Features :
◆ Adopting high-frequency design, high power density, small size, and high overall efficiency;
◆ Bidirectional energy storage design, which can achieve bidirectional flow control of electrical energy, and both photovoltaic and mains electricity can be charged to the battery;
◆ Ultra wide MPPT range, with a minimum of 40Vdc(24V models) / 80Vdc(48V models);
◆ Capable of setting working modes (grid connected mode, off grid mode, hybrid mode);
◆ Equipped with grid connected current setting function;
◆ Equipped with output priority setting function;
◆ Equipped with charging priority setting function;
◆ Equipped with lithium battery BMS communication function;
◆ Support battery-less operation mode.
Parameters Table:
| Model ： ZD-HFP | 10212 | 13212 | 18212 | 18224 | 23224 | 33224 | 43224 | 50248 | 63248 | 83248 | 103248 | 123248 | |
| PV | Max PV Input Power | 1500W | 2000W | 2500W | 2500W | 3000W | 5000W | 6000W | 7000W | 4500W*2 | 6000W*2 | 6000W*2 | |
| MPPT Tracking Voltage Range | 30VDC-240VDC | 40VDC-350VDC | 40VDC-450VDC | 80VDC-450VDC | |||||||||
| Rated Voltage | 180VDC | 240VDC | 280VDC | ||||||||||
| Max PV Input Voltage voc (at the lowest temperature) |
300VDC | 400VDC | 500VDC | ||||||||||
| Max PV Input Current | 13A | 15A | 18A | 27A | 18A*2 | 22A*2 | 27A*2 | ||||||
| MPPT Tracking Channels (Input Routed ) |
1 Routed | 2 Routed | |||||||||||
| Battery& Charging |
Battery Type | Lead-acid Battery/Lithium Battery | |||||||||||
| Custom Battery (Charging and discharging paramcters of different types of batteriescan be set through the operation board) | |||||||||||||
| Rated Battery Voltage | 12VDC | 24VDC | 48VDC | ||||||||||
| Battery voltage Range | 10.5~15VDC(default) | 21~30VDC(default) | 42~60VDC(default) | ||||||||||
| Max PV Charging Current | 60A | 80A | 100A | 60A | 80A | 120A | 150A | 100A | 120A | 150A | 180A | 200A | |
| Max AC Charging Current | 40A | 50A | 65A | 35A | 50A | 80A | 100A | 60A | 80A | 100A | 120A | 140A | |
| Max Charging Current | 60A | 80A | 100A | 60A | 80A | 120A | 150A | 100A | 120A | 150A | 180A | 200A | |
| On-Grid Operation | |||||||||||||
| On-Grid Output (AC) |
Rated Output Power | 1000W | 1300W | 1800W | 1800W | 2300W | 3300W | 4300W | 50000W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Output Voltage | 220VAC/230VAC/240VAC | ||||||||||||
| Grid Voltage Range | 187VAC~264VAC | ||||||||||||
| Rated Output Frequency | 50Hz/60Hz | ||||||||||||
| Frequency Range | 47Hz~52Hz(50Hz),57Hz~62Hz(60Hz) | ||||||||||||
| Rated Output Current |
4.5A/4.3A/ 4.1A |
5.9A/5.6A/ 5.4A |
8.1A/7.8A/ 7.5A |
8.1A/7.8A/ 7.5A |
10.4A/10A/ 9.5A |
15A/14.3A/ 13.8A |
19.5A/18.7A/ 17.9A |
22.7A/21.7A/ 20.8A |
28.6A/27.4A/ 26.2A |
37.7A/36.1A/ 34.6A |
46.7A/44.9A/ 42.9A |
55.9A/53.5A/ 51.3A |
|
| Power Factor | ＞0.98(Rated Power) | ||||||||||||
| Off-Grid Operation | |||||||||||||
| AC Input |
Rated Input voltage | 220V /230V/240V | |||||||||||
| Mains input voltage range | 165VAC-280VAC/ 120VAC~280VAC(Can be set) | ||||||||||||
| Rated Input Frequency | 50Hz/60Hz | ||||||||||||
| Input Frequency Range | 45Hz~55Hz(50Hz)，55Hz~65Hz(60Hz) | ||||||||||||
| AC Output |
Rated Output Power | 1000W | 1300W | 1800W | 1800W | 2300W | 3300W | 4300W | 5000W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Output Voltage | 220V /230V/240V | ||||||||||||
| Output Voltage Accuracy | ±2% | ||||||||||||
| Rated Input Frequency | 50Hz/60Hz | ||||||||||||
| Output Frequency Accuracy | ±1% | ||||||||||||
| Output Wave | Pure Sine Wave | ||||||||||||
| Hybrid Operation (Complementary Mode) | |||||||||||||
| AC Input |
Rated Input voltage | 220V /230V/240V | |||||||||||
| Mains input voltage range | 187VAC~264VAC | ||||||||||||
| Rated Input Frequency | 50Hz/60Hz | ||||||||||||
| Input Frequency Range | 47Hz~52Hz(50Hz)，57Hz-62Hz(60Hz) | ||||||||||||
| AC Output |
Rated Output Power | 1000W | 1300W | 1800W | 1800W | 2300W | 3300W | 4300W | 5000W | 6300W | 8300W | 10.3KW | 12.3KW |
| Rated Voltage Rated | 220VAC/230VAC/240VAC | ||||||||||||
| Output Current |
4.5A/4.3A/ 4.1A |
5.9A/5.6A/ 5.4A |
8.1A/7.8A/ 7.5A |
8.1A/7.8A/ 7.5A |
10.4A/10A/ 9.5A |
15A/14.3A/ 13.8A |
19.5A/18.7A/ 17.9A |
22.7A/21.7A/ 20.8A |
28.6A/27.4A/ 26.2A |
37.7A/36.1A/ 34.6A |
46.7A/44.9A/ 42.9A |
55.9A/53.5A/ 51.3A |
|
| Regular Parameters | |||||||||||||
| Maximum Conversion Efficiency (Battery Discharge) |
94%(peak value) | ||||||||||||
| MPPT Tracking Efficiency | ≥99.9 | ||||||||||||
| Transfer Time | 10ms(Typical value) | ||||||||||||
| Display | LCD+LED | ||||||||||||
| Cooling Method | Cooling fan in intelligent control | ||||||||||||
| Communication | RS485/Mobile APP(WIFI Monitoring or GPRS monitoring)(Optional) | ||||||||||||
| Protection Degree | IP20 | ||||||||||||
| Installation | Wall-Mounted | ||||||||||||
| Dimension and Weight | |||||||||||||
| Product Size(L*W*Hmm) | 265*231*91 | 285*250*91 | 310*250*91 | 285*250*91 | 325*275*102 | 375*297*102 | 390*320*112 | 515*365*117 | 535*462*117 | 630*540*130 | |||
| Package Size(L*W*Hmm) | 340*286*156 | 360*305*156 | 385*305*156 | 360*305*156 | 400*330*167 | 450*352*167 | 465*375*187 | 615*460*212 | 630*557*212 | 730*635*225 | |||
| N.W.(kg) | 3 | 3.6 | 4 | 3.7 | 3.9 | 5.5 | 6.7 | 7 | 8 | 13 | 14.7 | 22 | |
| G.W.(kg) | 3.5 | 4.5 | 5 | 4.6 | 4.8 | 6.5 | 7.7 | 8 | 9.5 | 14.5 | 16.7 | 24.5 | |

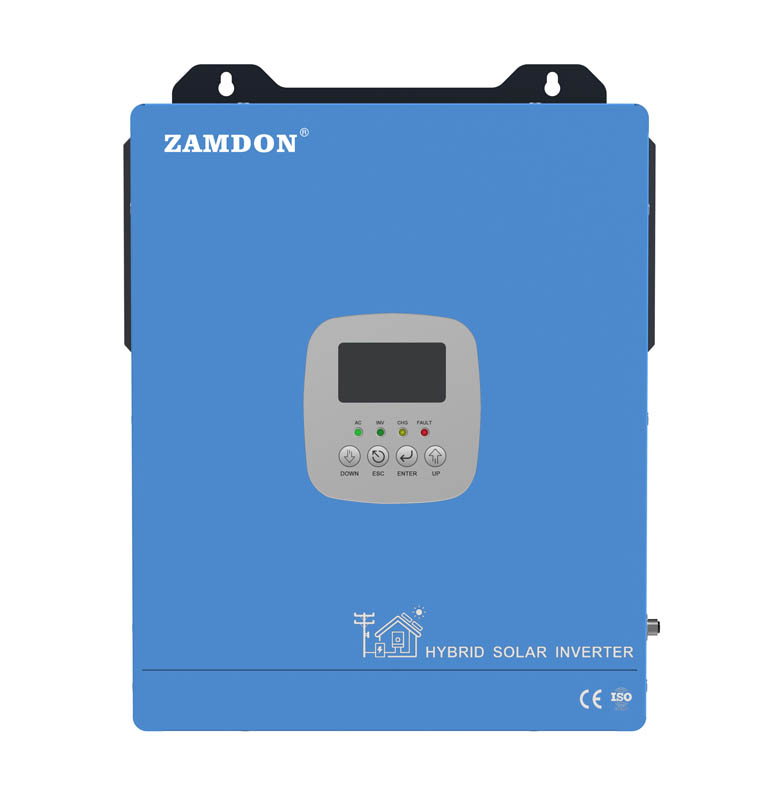

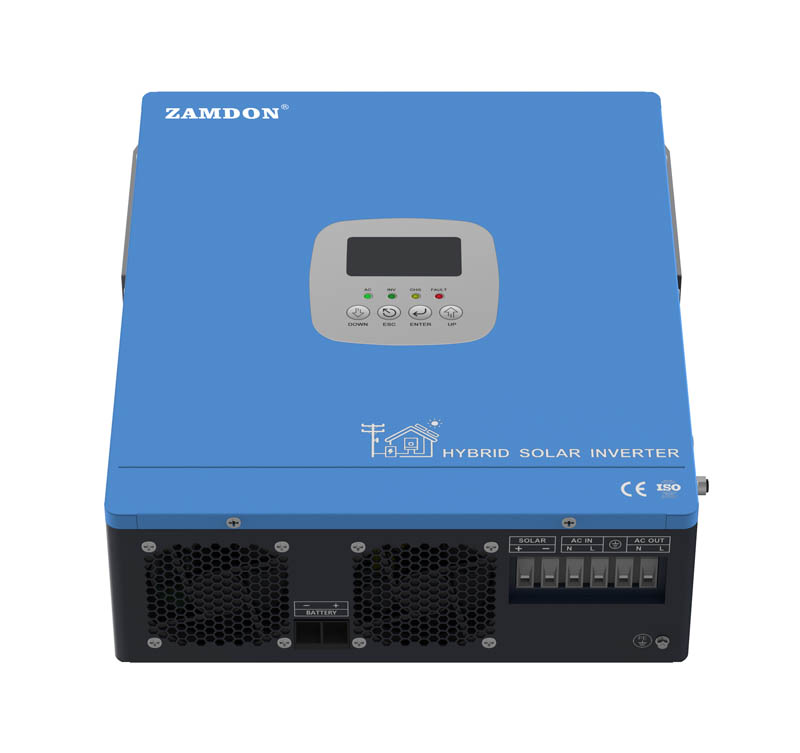

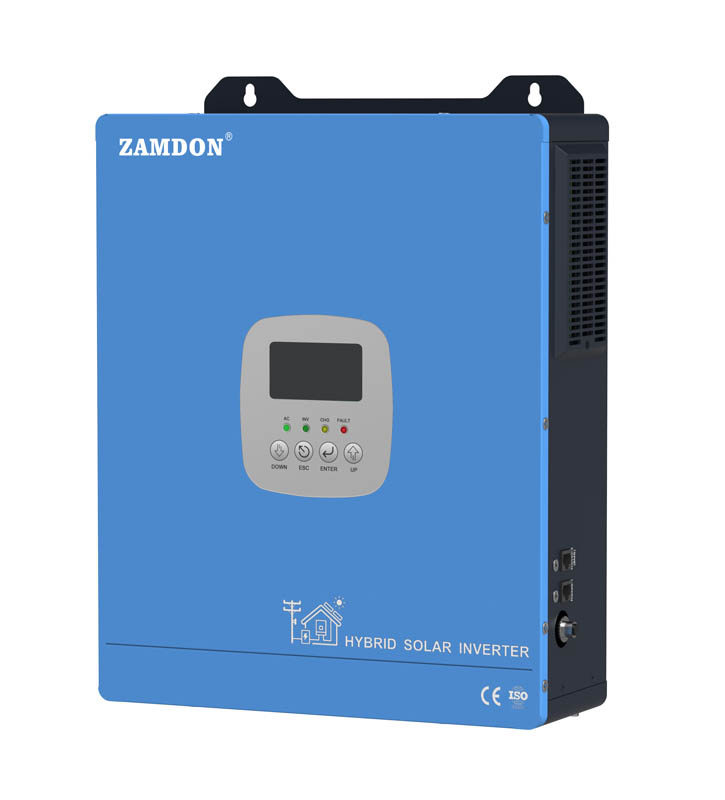

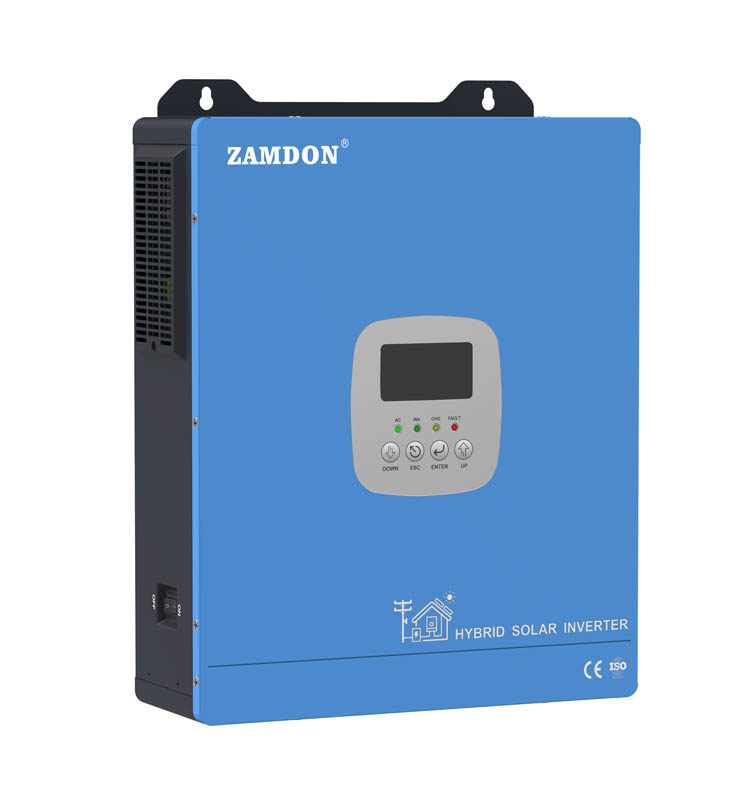

ZD-HFP Pure Sine Wave On Off Grid Mppt Hybrid Solar Inverter
