Description
Features :

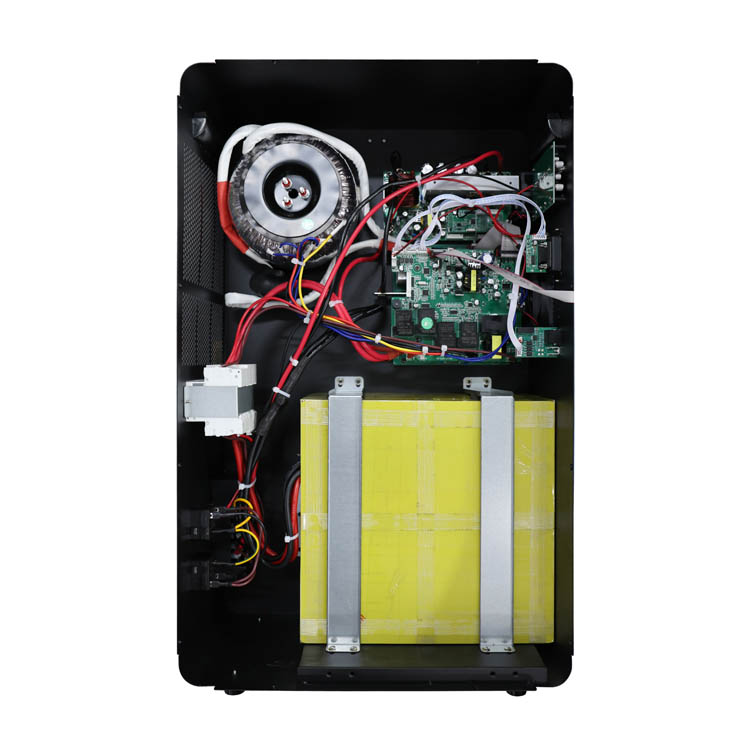

◆ Convenient installation, integrating solar controller, inverter and battery all in one machine.
◆ Compact and elegant design, unique art design and convenient output connection port.
◆ Flexible energy storage capacity, supporting three charging methods: solar power, Petrol and diesel generator , and grid power .
◆ Support wifi or app monitoring.
◆ With overvoltage, overtemperature, overload, battery BMS communication and comprehensive protection.
Parameters Table:
| Model:ZD- ESS-Li | 122H | 222H |
| Power | ||
| Rated Power | 1200W | 2200W |
| Battery | ||
| Standard Battery Voltage | 25.6VDC | |
| Battery Type | LiFePO4 Battery | |
| Battery Capacity | 50AH | 100AH |
| Max Charge Current (utility grid+solar) | 30A | 60A |
| Max utility grid/solar charge current | 20A/10A | 40A/20A |
| AC Input | ||
| AC Input Voltage | 110VAC/120VAC/220VAC/230VAC/240VAC | |
| AC Input Frequency | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |
| AC Output | ||
| Output Wave | Pure sine wave | |
| Conversion efficiency(INV mode) | >85% | |
| Output Voltage/Frequency (INV mode) | 110VAC/120VAC/220VAC/230VAC/240VAC / 50Hz±1%,60Hz±1% (Can be set) | |
| MPPT Solar Charge Controller | ||
| Max PV Input Voltage（Voc) (At The Lowest Temperature) | 120VDC | 120VDC |
| PV Array Maximum Power | 560W | 1120W |
| MPPT Tracking Voltage Range | 30VDC-100VDC | 30VDC-100VDC |
| Other | ||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Battery overvoltage recovery voltage/Overload power protection/Short circuit protection/Overtemperature protection | |
| Protection Degree | IP20 | |
| Display | LCD | |
| Cooling method | Cooling fan in intelligent control | |
| Communication | RS485, Mobile APP（WIFI or GPRS monitor）（optional） | |
| Working Mode | Mains priority/PV priority | |
| Operating Temperature | -15 ℃ ~40 ℃ | |
| Relative Humidity | 0%-95% (No condensation) | |
| Size | ||
| Product Size(L*W*Hmm) | 560*380*150 | 630*430*219 |
| Package Size(L*W*Hmm) | 610*435*225 | 680*485*295 |
| N.W.(kg)(excluding battery) | 15 | 20.5 |
| G.W.(kg)(excluding battery) | 16.5 | 22.5 |
